Panel-PC Around P-W1

  • Konfigurieren Sie Ihr Panel-PC System

    Displaydiagonale, Auflösung
    Touch-Technologie
    CPU
    Arbeitsspeicher
    Festplatten-Speicher
    Betriebssystem

Panel-PC Around P-W1

Display15.6″, 1920×1080, 16:9
18.5″, 1920×1080, 16:9
21.5″, 1920×1080, 16:9
Helligkeit cd/m2350
Bildwinkel H/V165°/165°
LED-Backlight Lebensdauer Std40.000
Touch-TechnologieKapazitiv, Optional: Resistiv
Front/GehäuseAluminium, silber
SchutzklasseIP66, rundum
CPUIntel® Core™ i3-1215U, 6x 3.30GHz/4.40GHz
Intel® Core™ i5-1235U, 10x 3.30GHz/4.40GHz
Intel® Core™ i7-1255U, 10x 3.50GHz/4.70GHz
Mainboard ChipsatzIntel® SoC
KühlungPassiv
Arbeitsspeicher8GB DDR5 RAM, SO-DIMM, max. 64GB
Festplatten-Schnittstellen1x SATA 2.5″, 1x M.2 2280 (SATA)
RAID-Level–
Netzwerk2x GbE LAN, Intel® I226V (SP13 Waterproof -> RJ45)
USB2x USB 2.0 (SP13 Waterproof -> USB-A)
Seriell/Parallel1x RS232 (SP13 Waterproof -> COM)
VideoOptional: 1x HDMI (SP13 Waterproof -> HDMI)
AudioRealtek ACL897 Audio Controller
Erweiterungs-Schnittstellen1x M.2 2230 Key E (PCIe/USB), 1x M.2 3042/3052 Key B (PCIe/USB)
Weitere MerkmalePower Button, Optional: Optical Bonding
Betriebsspannung9V bis 36V DC
Leistungsaufnahmemax. 75W (21.5″, i7)
Betriebstemperatur-10° bis 60°C
Lagertemperatur-25° bis 75°C
Lagerluftfeuchtigkeit5% bis 95% bei 40°C, nicht kondensierend
Resistenz Vibration1.5 Grms @ 5 ~500 Hz, 1 hr/axis, IEC 60068-2-64
Resistenz SchockOperating 10G/peak acceleration (11 ms duration)
ZertifikatCE / FCC Class A
Montage/VerwendungVESA (100×100)
Maße mm (B x H x T)15.6″: 398.0 x 248.0 x 45.0
18.5″: 464.0 x 284.6 x 45.0
21.5″: 536.0 x 327.8 x 45.0
Gewicht kg15.6″: 5.5
18.5″: 7.5
21.5″: 9.0

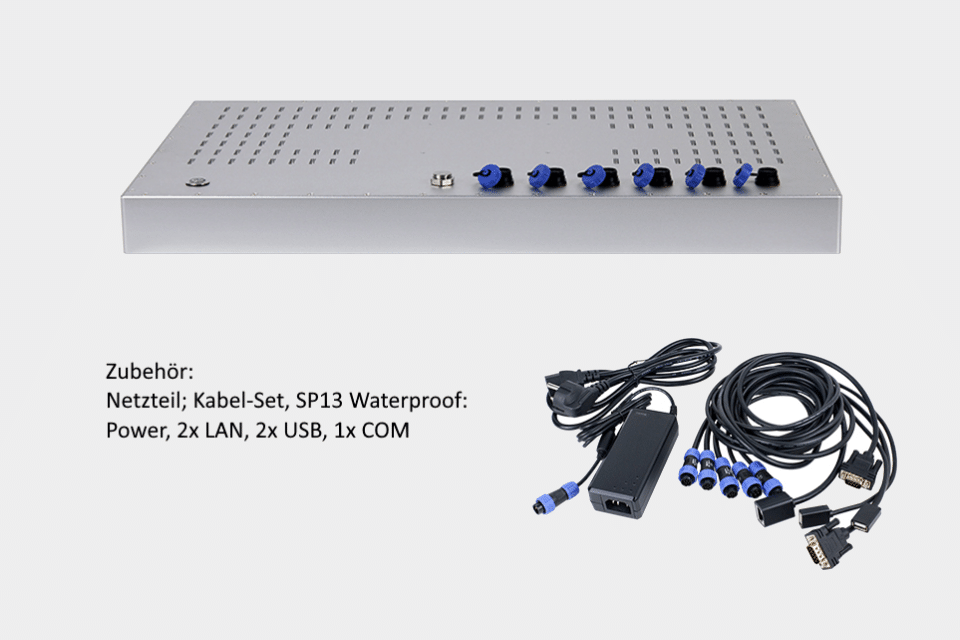

ZubehörNetzteil; Kabel-Set, SP13 Waterproof: Power, 2x LAN, 2x USB, 1x COM
OS supportWindows® 11 64Bit, Windows® 10 64Bit, andere auf Anfrage

Bestellinformationen & Datenblätter



BestellnummerProduktnameBasiskonfiguration
PT-VM-W01-156-3Around P-W1-16-315.6″, 1920×1080, 16:9; Intel® Core™ i3-1215U, 6x 3.30GHz/4.40GHz; 8GB RAM
PT-VM-W01-156-5Around P-W1-16-515.6″, 1920×1080, 16:9; Intel® Core™ i5-1235U, 10x 3.30GHz/4.40GHz; 8GB RAM
PT-VM-W01-156-7Around P-W1-16-715.6″, 1920×1080, 16:9; Intel® Core™ i7-1255U, 10x 3.50GHz/4.70GHz; 8GB RAM
PT-VM-W01-185-3Around P-W1-18-318.5″, 1920×1080, 16:9; Intel® Core™ i3-1215U, 6x 3.30GHz/4.40GHz; 8GB RAM
PT-VM-W01-185-5Around P-W1-18-518.5″, 1920×1080, 16:9; Intel® Core™ i5-1235U, 10x 3.30GHz/4.40GHz; 8GB RAM
PT-VM-W01-185-7Around P-W1-18-718.5″, 1920×1080, 16:9; Intel® Core™ i7-1255U, 10x 3.50GHz/4.70GHz; 8GB RAM
PT-VM-W01-215-3Around P-W1-21-321.5″, 1920×1080, 16:9; Intel® Core™ i3-1215U, 6x 3.30GHz/4.40GHz; 8GB RAM
PT-VM-W01-215-5Around P-W1-21-521.5″, 1920×1080, 16:9; Intel® Core™ i5-1235U, 10x 3.30GHz/4.40GHz; 8GB RAM
PT-VM-W01-215-7Around P-W1-21-721.5″, 1920×1080, 16:9; Intel® Core™ i7-1255U, 10x 3.50GHz/4.70GHz; 8GB RAM
