Box-PC Magic C-R5

zzgl. Versandkosten

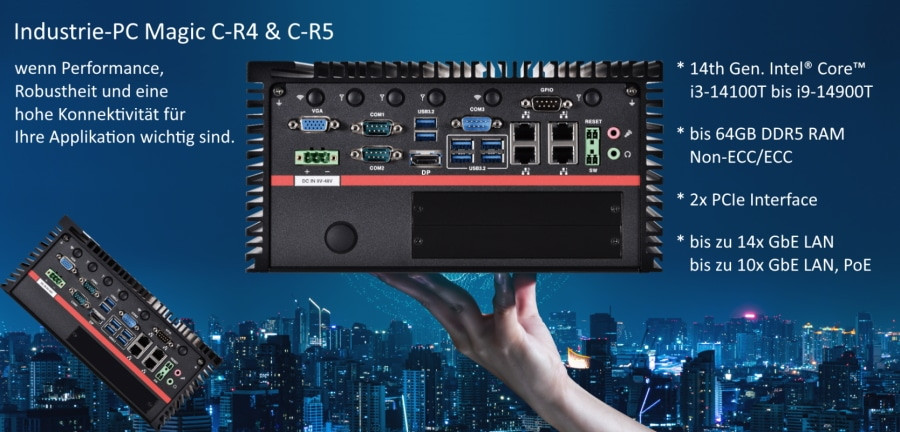

Magic C-Rx_Industrial PC Magic models from ipc-core

The embedded industrial PC systems Box-PC Magic C-R4 and Box-PC Magic C-R5 are quite magical. The models are powered by 14th generation Intel® Core™ i processors. The systems work in ambient temperatures of -30° to 60°C. With up to 14 GbE LAN interfaces (up to 10 of which are optionally Power over Ethernet) and 8 USB 3.2 Gen2 interfaces, they are true communications miracles.



Box PC with numerous expansion interfaces

The Magic models can be expanded with fieldbus systems such as PROFINET®, EtherCAT®, CAN or other protocols via the integrated PCI Express interface(s). Internal Mini PCIe and M.2 interfaces are ideal for system expansion with WLAN, 4G or 5G and our magicians also master the fine art of artificial intelligence. The support of up to 4 Intel® Movidius™ Myriad™ X modules makes this possible. Our Magic C-R5 box PC shines with robustness and performance for your applications.



  • Configure your Box-PC system

Hier weitere Informationen anfordern

Magic C-Rx_Industrial PC Magic models from ipc-core

The embedded industrial PC systems Box-PC Magic C-R4 and Box-PC Magic C-R5 are quite magical. The models are powered by 14th generation Intel® Core™ i processors. The systems work in ambient temperatures of -30° to 60°C. With up to 14 GbE LAN interfaces (up to 10 of which are optionally Power over Ethernet) and 8 USB 3.2 Gen2 interfaces, they are true communications miracles.



Box PC with numerous expansion interfaces

The Magic models can be expanded with fieldbus systems such as PROFINET®, EtherCAT®, CAN or other protocols via the integrated PCI Express interface(s). Internal Mini PCIe and M.2 interfaces are ideal for system expansion with WLAN, 4G or 5G and our magicians also master the fine art of artificial intelligence. The support of up to 4 Intel® Movidius™ Myriad™ X modules makes this possible. Our Magic C-R5 box PC shines with robustness and performance for your applications.

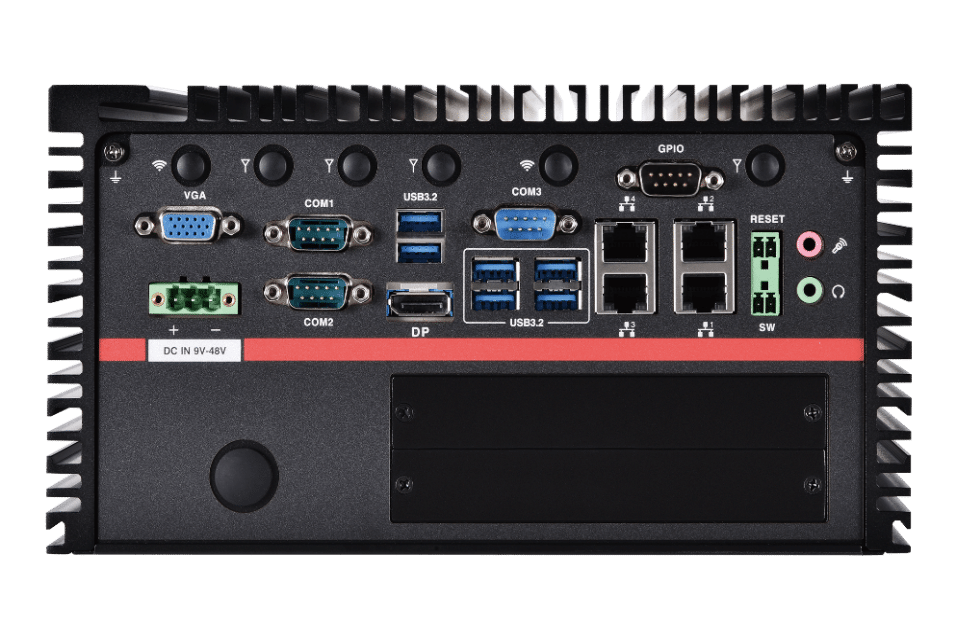

Box-PC Magic C-R5
CPU Intel® Core™ i3-14100T, 4x 2.70GHz/4.40GHz
Intel® Core™ i5-14500T, 14x 1.20GHz/4.80GHz
Intel® Core™ i7-14700T, 20x 0.90GHz/5.20GHz
Intel® Core™ i9-14900T, 24x 0.80GHz/5.50GHz
further on request
Mainboard Chipsatz Intel® R680E
Grafik Intel® UHD-Grafik 770 (i5, i7, i9)/ Intel® UHD-Grafik 730 (i3)
Cooling Passive/Active
System memory 8GB DDR5 RAM, 2x SO-DIMM, max. 64GB (Non-ECC/ECC)
Hard drive interfaces 2x SATA 2.5″, 1x M.2 2280/2260/2242 (NVMe/SATA), 1x M.2 2242/2260 (SATA), 1x mSATA
RAID-Level 0/1/5
Network 4x 2.5GbE LAN, Intel® I226-LM,
Option via Extension-Module: bis 14x GbE LAN / bis 10x GbE LAN PoE
USB 8x USB 3.2 Gen2,
Option via PCIe: + 2x USB / 4x USB / 6x USB / uvm.
Seriell/Parallel 3x RS232/422/485,
Option via Extension-Module: bis 11x RS232/422/485
Video 1x HDMI, 1x DisplayPort, 1x VGA
Audio 1x Line-out, 1x Mic-in
Expansion slot 1x PCIe x16, 1x PCIe x1 (Option: 2x PCIe x8), 1x M.2 2280/2260/2242 Key M (PCIe x4/NVMe/SATA), 1x M.2 3052/3042/2242/2260 Key B (USB3.0/SATA/PCIe x1), 1x M.2 2230 Key E (CNVi/PCIe x1/USB 2.0), 1x Mini PCIe full size/half size (USB2.0/PCIe x1/SATA)
Other features TPM2.0, Power Button, 2x 2-Pin Reset/Remote Power On/Off, 1x 8Bit GPIO (DB9), 2x SIM-Card-Slot, 6x SMA (f. WLAN-Antennen)
Option via Extension-Modul:
– 4x RS232/422/485, Isolated 4x DI, 4x DO
– 2x GbE LAN, PoE+, Intel® i210-IT, RJ45
– 4x GbE LAN, Intel® i210-IT, RJ45
– 4x GbE LAN, PoE+, Intel® i210-IT, RJ45
– 4x GbE LAN, Intel® i210-IT, M12
– 4x GbE LAN, PoE+, Intel® i210-IT, M12
– Power ignition (IGN) 12V/24V
Option via Mini PCIe: PROFINET, EtherCAT, CANopen, Modbus, uvm.
Option: Movidius Myraid X
Supported Framework: TensorFlow, Caffe, MXNET
Operating voltage 35W TDP CPU: 12V to 48V DC; 65W TDP CPU: 24V to 48V DC
Power consumption 35W TDP CPU: max. 130W; 65W TDP CPU: max. 180W
Operating temperature 35W TDP CPU: -30° to 60°C; 65W TDP CPU: -30° to 50°C
Storage temperature -40° to 80°C
Storage humidity 10% to 95% at 85°C non-condensing
Resistenz Vibration Operating 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64)
Resistenz Schock Operating 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Certificate CE / FCC Class A / LVD test EN62368-1
Front/housing Steel, black
protection class IP20
Installation Wall
Dimension mm (W x H x D) 268 x 128 x 246, including mounting rails: 268 x 138 x 282
Weight kg approx. 7.7
Accessories Driver DVD, Quick Installation Guide, wall mounting set, 3-pin terminal plug (power), 2x 2-pin terminal plug (reset and remote on-off)
OS support Windows® 11 64Bit, Windows® 10 64Bit, Linux,other on request

Ordering information data sheets

Order number Product name Basic configuration
CM-MO-R05-410-3 Magic C-R5-3 Intel® Core™ i3-14100T, 4x 2.70GHz/4.40GHz; 4GB RAM
CM-MO-R05-410-5 Magic C-R5-5 Intel® Core™ i5-14500T, 14x 1.20GHz/4.80GHz; 4GB RAM
CM-MO-R05-410-7 Magic C-R5-7 Intel® Core™ i7-14700T, 20x 0.90GHz/5.20GHz; 4GB RAM
CM-MO-R05-410-9 Magic C-R5-9 Intel® Core™ i9-14900T, 24x 0.80GHz/5.50GHz; 4GB RAM
