Name: Panel-PC Creation P-I9
SKU: 7456
Availability: InStock

Panel-PC Creation P-I9
Display	13.3″, 1920×1080, 16:9
Brightness	^cd/m2 300
Angle of view H/V	165°/168°
LED backlight life	40,000 hours
Touch technology	Capacitive
Front/housing	aluminum, silver
Protection class	IP65, front
CPU	Intel® N97, 4x 3.6GHz Intel® Core™ i3-1215U, 6x 3.30GHz/4.40GHz Intel® Core™ i5-1235U, 10x 3.30GHz/4.40GHz
Mainboard	ChipsatzIntel® SoC
Cooling	Passive
System memory	8GB DDR5 RAM, SO-DIMM, max. 32GB
Hard drive interfaces	1x M.2 2280 (SATA)
RAID-Level	–

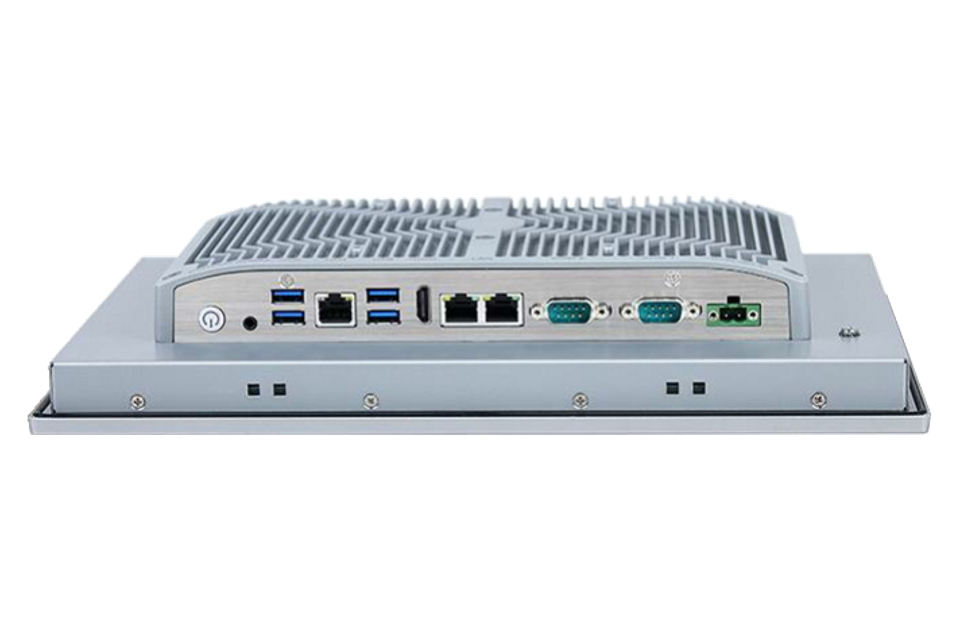

Network	2x 2.5GbE LAN (Intel® 226-V), 1x GbE LAN (Intel® 219)
USB	Core i3/i5: 5x USB 3.2 Gen2 (4x Typ A, 1x Typ C); N97: 4x USB 3.0 (Typ A)
Seriell/Parallel	2x RS232/422/485
Video	1x HDMI
Audio	1x Line-out/Mic-in
Expansion slot	1x M.2 Key E 2230 (PCIe+USB, Wifi+BT), 1x M.2 Key B 3042/3052 (PCIe/ USB 3.0+USB2.0, 4G/5G)
Additional features	TPM 2.0
Operating voltage	9V to 36V DC
Power consumption	N97: max. 45W, Core i3: max. 55W, Core i5: max. 65W
Storage temperature	-10° to 60°C
Storage temperature	-20° to 70°C
Storage humidity	5% to 95% at 40°C, non-condensing
Resistenz Vibration	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Resistenz Schock	Operating 5G/peak acceleration (11 ms duration)
Zertifikat	CE / FCC Class A
Mounting/Use	VESA (100×100)
Dimensions mm (W x H x D)	344.5 x 216.0 x 60.0, Cut-out: 331 x 203
Weight kg	2.9
Accesories	2-Pin Terminal-Stecker
OS support	Windows® 11 64Bit, Windows® 10 64Bit, others on request
