Panel-PC Fit P-T7

  • Konfigurieren Sie Ihr Panel-PC System

    Displaydiagonale, Auflösung
    Touch-Technologie
    CPU
    Arbeitsspeicher
    Festplatten-Speicher
    Netzteil
    Betriebssystem

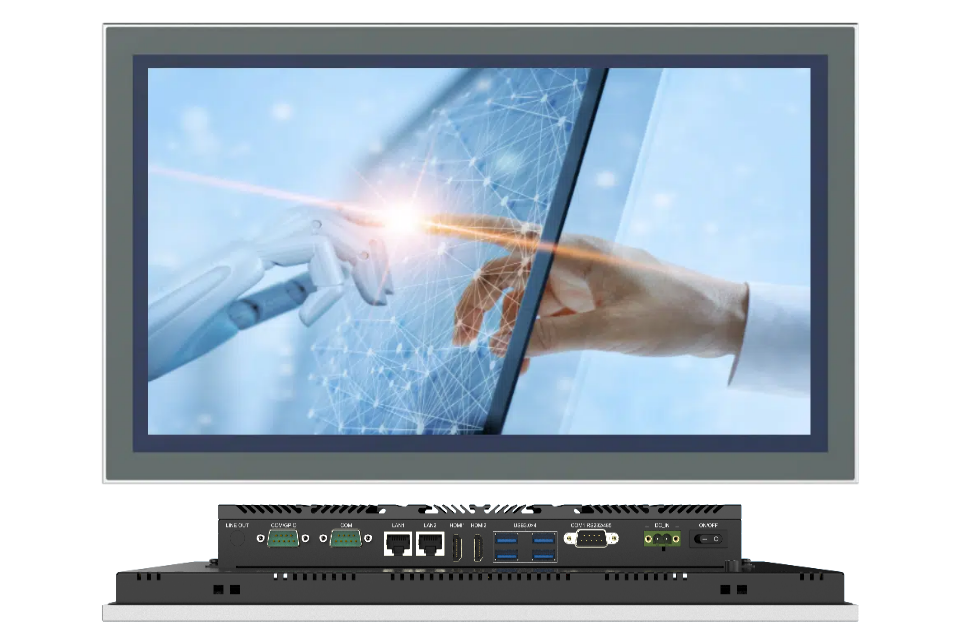

Touch Panel-PC Fit P-T7

Display15″, 1024×768, 4:3
15.6″, 1366×768, 16:9
15.6″, 1920×1080, 16:9
17″, 1280×1024, 5:4
18.5″, 1366×768, 16:9
19″, 1280×1024, 5:4
21.5″, 1920×1080, 16:9
Helligkeit cd/m2300
Bildwinkel H/V165°/168°
LED-Backlight Lebensdauer Std30.000
Touch-TechnologieResistiv
Front/GehäuseAluminium, silber
SchutzklasseIP65, frontseitig
CPUIntel® Core™ i3-8145U, 2x 2.10GHz/3.90GHz
Intel® Core™ i5-8265U, 4x 1.60GHz/3.90GHz
Intel® Core™ i7-8565U, 4x 1.80GHz/4.60GHz
Mainboard ChipsatzIntel® SoC
KühlungPassiv
Arbeitsspeicher4GB DDR4 RAM, SO-DIMM, max. 16GB
Festplatten-Schnittstellen1x mSATA, Option: 1x SATA 2.5″
RAID-Level–
Netzwerk2x GbE LAN, Intel® I211-AT
USB4x USB 3.0, 2x USB 2.0
Seriell/Parallel2x RS232, Option: 1x RSRS485
Video1x HDMI
Audio1x Line-out, 1x Mic-in
Erweiterungs-Schnittstellen1x Mini PCIe full size
Weitere Merkmale
Betriebsspannung12V bis 24V DC
Leistungsaufnahmemax. 80W (24″)
Betriebstemperatur0° bis 55°C
Lagertemperatur-10° bis 70°C
Lagerluftfeuchtigkeit10% bis 95% bei 10°C nicht kondensierend
Resistenz VibrationOperating Random vibration Test 50-500Hz, 1.5Grms, 0.15mm peak to peak
Resistenz SchockOperating 10G/peak acceleration (11 ms duration)
ZertifikatCE / FCC Class A
Montage/VerwendungSchaltschrank-Einbau, VESA (75×75, 100×100)
Maße mm (B x H x T)15″: 352.2 x 279.3 x 56.5, Cut-out: 341 x 268
15.6″: 395.6 x 247.9 x 56.5, Cut-out: 385 x 237
17″: 386.5 x 323.5 x 56.5, Cut-out: 376 x 313
18.5″: 462.4 x 296.6 x 56.5, Cut-out: 451 x 276
19″: 422.3 x 353.0 x 56.5, Cut-out: 411 x 342
21.5″: 527.0 x 318.7 x 56.5, Cut-out: 516 x 308
Gewicht kg15″: 3.9
15.6″: 4.3
17″: 4.7
18.5″: 5.6
19″: 6.2
21.5″: 7.0
Zubehör2-Pin Terminal-Stecker
OS supportWindows® 10 64Bit, andere auf Anfrage

Bestellinformationen & Datenblätter

BestellnummerProduktnameBasiskonfiguration
PT-SE-T07-150-3Fit P-T7-15-315″, 1024×768, 4:3; Intel® Core™ i3-8145U, 2x 2.10GHz/3.90GHz; 4GB RAM
PT-SE-T07-150-5Fit P-T7-15-515″, 1024×768, 4:3; Intel® Core™ i5-8265U, 4x 1.60GHz/3.90GHz; 4GB RAM
PT-SE-T07-150-7Fit P-T7-15-715″, 1024×768, 4:3; Intel® Core™ i7-8565U, 4x 1.80GHz/4.60GHz; 4GB RAM
PT-SE-T07-156-3Fit P-T7-16-315.6″, 1366×768, 16:9; Intel® Core™ i3-8145U, 2x 2.10GHz/3.90GHz; 4GB RAM
PT-SE-T07-156-5Fit P-T7-16-515.6″, 1366×768, 16:9; Intel® Core™ i5-8265U, 4x 1.60GHz/3.90GHz; 4GB RAM
PT-SE-T07-156-7Fit P-T7-16-715.6″, 1366×768, 16:9; Intel® Core™ i7-8565U, 4x 1.80GHz/4.60GHz; 4GB RAM
PT-SE-T07-157-3Fit P-T7-16-315.6″, 1920×1080, 16:9; Intel® Core™ i3-8145U, 2x 2.10GHz/3.90GHz; 4GB RAM
PT-SE-T07-157-5Fit P-T7-16-515.6″, 1920×1080, 16:9; Intel® Core™ i5-8265U, 4x 1.60GHz/3.90GHz; 4GB RAM
PT-SE-T07-157-7Fit P-T7-16-715.6″, 1920×1080, 16:9; Intel® Core™ i7-8565U, 4x 1.80GHz/4.60GHz; 4GB RAM
PT-SE-T07-170-3Fit P-T7-17-317″, 1280×1024, 5:4; Intel® Core™ i3-8145U, 2x 2.10GHz/3.90GHz; 4GB RAM
PT-SE-T07-170-5Fit P-T7-17-517″, 1280×1024, 5:4; Intel® Core™ i5-8265U, 4x 1.60GHz/3.90GHz; 4GB RAM
PT-SE-T07-170-7Fit P-T7-17-717″, 1280×1024, 5:4; Intel® Core™ i7-8565U, 4x 1.80GHz/4.60GHz; 4GB RAM
PT-SE-T07-185-3Fit P-T7-18-318.5″, 1366×768, 16:9; Intel® Core™ i3-8145U, 2x 2.10GHz/3.90GHz; 4GB RAM
PT-SE-T07-185-5Fit P-T7-18-518.5″, 1366×768, 16:9; Intel® Core™ i5-8265U, 4x 1.60GHz/3.90GHz; 4GB RAM
PT-SE-T07-185-7Fit P-T7-18-718.5″, 1366×768, 16:9; Intel® Core™ i7-8565U, 4x 1.80GHz/4.60GHz; 4GB RAM
PT-SE-T07-190-3Fit P-T7-19-319″, 1280×1024, 5:4; Intel® Core™ i3-8145U, 2x 2.10GHz/3.90GHz; 4GB RAM
PT-SE-T07-190-5Fit P-T7-19-519″, 1280×1024, 5:4; Intel® Core™ i5-8265U, 4x 1.60GHz/3.90GHz; 4GB RAM
PT-SE-T07-190-7Fit P-T7-19-719″, 1280×1024, 5:4; Intel® Core™ i7-8565U, 4x 1.80GHz/4.60GHz; 4GB RAM
PT-SE-T07-215-3Fit P-T7-21-321.5″, 1920×1080, 16:9; Intel® Core™ i3-8145U, 2x 2.10GHz/3.90GHz; 4GB RAM
PT-SE-T07-215-5Fit P-T7-21-521.5″, 1920×1080, 16:9; Intel® Core™ i5-8265U, 4x 1.60GHz/3.90GHz; 4GB RAM
PT-SE-T07-215-7Fit P-T7-21-721.5″, 1920×1080, 16:9; Intel® Core™ i7-8565U, 4x 1.80GHz/4.60GHz; 4GB RAM
