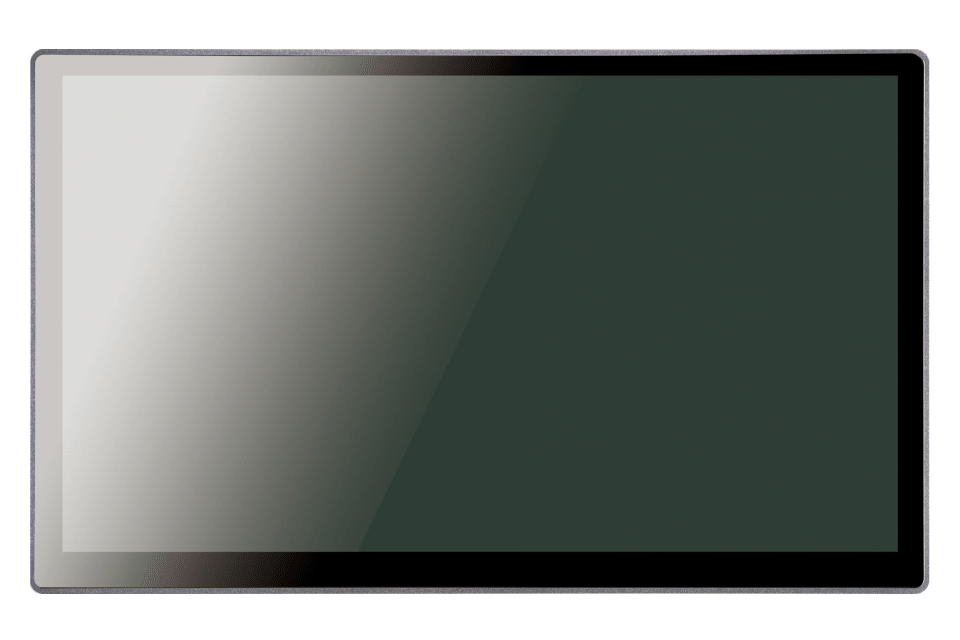

Panel-PC Challenger P-W1
zzgl. Versandkosten
| Challenger P-W1 | |
| Display | 15″, 1024×768, 4:3 15.6″, 1920×1080, 16:9 21.5″, 1920×1080, 16:9 |
| Luminance cd/m2 | 300 |
| View Angle H/V | 176°/176° |
| Backlight lifetime hrs. | 50.000 |
| Touch technologie | Capacitive |
| Front/Housing | Steel, silver |
| Protection class | IP65, front |
| CPU | Intel® Celeron 3965U, 2x 2.20GHz Intel® Core™ i3-7100U, 2x 2.4GHz Intel® Core™ i5-7300U, 2x 2.60GHz/3.50GHz Intel® Core™ i7-7600U, 2x 2.80GHz/3.90GHz |
| Mainboard chipset | Intel® SoC |
| Cooling | Fanless |
| System memory | 4GB DDR4 RAM, SO-DIMM, max. 32GB |
| Storage-interface | 1x SATA 2.5″ SSD |
| RAID level | – |
| Network | 2x GbE LAN, 1x Intel® I219-LM, 1x Intel® I211-AT |
| USB | 4x USB 3.0 |
| Serial/Parallel COM | 4x RS232/422/485 |
| Video | 1x HDMI, 1x DP |
| Audio | Speaker 2x 2W, 1x Line-out/Mic-in |
| Expansion slot | 1x M.2 2230 Key E |
| Other features | 7H scratch resistance glass, Power Button, Reset Button, 2-Pin Remote Power On/Off, 1x 10-Pin GPIO 8bit |
| Power input | 8V to 24V DC |
| Power consumption | max. 70W (21″) |
| Operating temperature | -10°C to 55°C |
| Storage temperature | -20° to 70°C |
| Storage humidity | 10% to 95% at 40°C not condensing |
| Vibration resistance | Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD / 2Grms @with SSD, follow IEC 60068-2-64 |
| Schock resistance | Operating 10 G peak acceleration (11 ms duration) / follow IEC 60068-2-27 |
| Certification | CE / FCC Class B |
| Mounting | Panel mount, VESA |
| Dimension mm (W x H x D) | 15″: 283.1 x 360.4 x 81.7; Cut-out: 15.6″: 235.6 x 386.2 x 83.0; Cut-out: 21.5″: 508.0 x 308.0 x 83.0; Cut-out: |
| Weight kg | 15″: 4.8 15.6″: 5.0 21.5″: 8.0 |
| Accessories | Driver DVD, Quick Installation Guide, Montage-Set, 3-Pin Terminal-plug, 10-Pin Terminal-plug, GPIO |
| OS support | Windows® 10 32Bit, Windows® 10 64Bit, others on request |
